PDF DownloadPerformance characteristics
CPCY series off-road forklifts adopts low noise engine with features of low displacement and environmental protection.This product uses full hydraulic mechanic automatic transmission and steering system for flexible and easy handling.This model has a large hauling capacity from its double-axle six wheel drive for improved safety and stability.Articulated body design reduces tuming radius.This model is fitted with Glamour luxurious seat for extra comfort.Movement Control Stick incorporates German ZF Technology.
Terrain Forklift is adaptable to various surface conditions.It is suitable to operate on soft soils,grass,terrain,mine sites and many other rugged surfaces.Extensive range of attachments is available for this model to extend its working capacity for heavy duty mining projects.

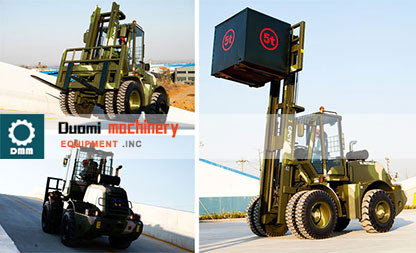

Main Parameters of CPCY50 4x4WD Rough Terrain Forklift
|
Sequence |
Item |
Unit |
Specification |
|
|
1 |
Rated load |
kg |
5000 |
|
|
2 |
Length |
No fork |
mm |
4300 |
|
With fork |
mm |
5750 |
||
|
3 |
Width |
mm |
2230 |
|
|
4 |
Height |
Height of the mast |
mm |
2900 |
|
Height of the cab |
mm |
2950 |
||
|
Full height whem max lifting |
mm |
4367 |
||
|
5 |
Wheelbase |
mm |
2280 |
|
|
6 |
Front overhang distance |
mm |
880 |
|
|
7 |
Front wheel tread |
mm |
1630 |
|
|
8 |
Rear wheel tread |
mm |
1550 |
|
|
9 |
Ground clearance |
mm |
310 |
|
|
10 |
Max lifting height |
mm |
3000 |
|
|
11 |
Free lifting height |
mm |
- |
|
|
12 |
Forward / rear titling angle of mast |
(°) |
6/12 |
|
|
13 |
Standard Dead weight(no-load) |
kg |
9535 |
|
|
14 |
Full load Max lifting speed |
mm/s |
300 |
|
|
15 |
Min turning radius |
mm |
4980 |
|
|
16 |
Max speed |
km/h |
20.0 |
|
|
17 |
Max clinbing degree(full load) |
% |
20 |
|
|
18 |
Max Drawbar(full load) |
kN |
30.0 |
|
|
19 |
Load center distance |
mm |
500 |
|
