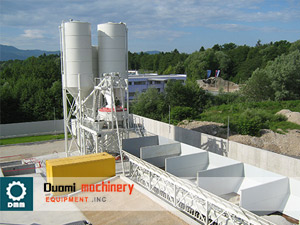

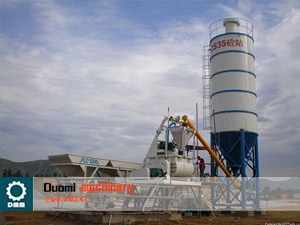

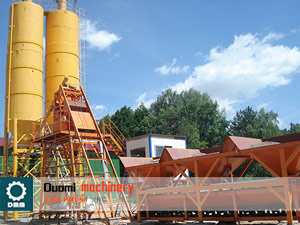

HZS Bucket Type Concrete Mixing Plants

The concrete mixing plant is consisted of a mixing console, material weighing system, material handling systems, material storage system and control system and other ancillary facilities. Floor aggregate metering station aggregate measurement, reducing the four intermediate links, and is the measurement of the vertical blanking, saving the measurement time, thus greatly improving the production efficiency, the same types of circumstances, the mixing efficiency is higher than batching plant production efficiency by one third.
Available for many applications, this stationary concrete batching plant is widely used for water conservancy, electric power, railroad, road, tunnel, the arch of bridge, harbor-wharf and the national defense-project etc.

Main parts of HZS bucket type concrete mixing plants

1. Mixing system: adopt JS series Twin-shaft Concrete Mixer for high quality of mixing effect, long service life of spare parts and easy maintenance;
2. Cement system: adopt separated cement silo and screw conveyor for cement storage and feeding, bulk cement pump can be provided based on customers requirement;
3. Weighing and control system: adopt new-design of electrical weighing system, can work with computer, SIEMENS PLC, digital display, etc, which will make sure the measurement accurate and timely;
4. Air system: adopt high quality of air compressor, air pipe and air cylinder, easy installation and maintenance;
5. Aggregate feeding system: adopt Bucket (Skip Hopper), also be equipped ladder for worker maintenance or service;
6. Aggregate batcher: adopt PLD series of automatically weighing and discharging machine, reliable quality and long service life.

Technical features of HZS Bucket type concrete mixing plants

1. HZS series bucket type concrete mixing plants adopt JS series twin-shaft concrete mixer;
2. Adopt PLD series aggregate batcher, aggregate bins quantity: 2~4;
3. Adopt central control system, can equip computer, PLC, printer, air conditioner;
4. Adopt separated cement silo and screw conveyor for storage and feeding;
5. Optional Accessories based on customers’ requirement, such as the environmental external packing, bulk cement pump, etc.

Main parameters
