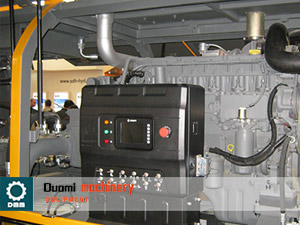

PDF DownloadHBT series motor engine concrete pump Performance characteristics
1. Efficient hydraulic system, new high-speed commutation with pumping exchange efficiency being increased by12%;
2. Large displacement pumping systems, the suction efficiency having been increased by 6% to meet the needs of various operating conditions;
3. Full hydraulic commutaton open system, high hydraulic oil cleanliness, low oil temperature,small impact;
4. The main cylinder waterproof seal patented technology,effectively preventing water from entering the hydraulic system to avoid hydraulic oil emulsion;
5. Advanced S valve system, good sealing performance, economic and durable quick-wear parts, easy replacement;
6. Hydraulic and electrical components adopt international famous brands with high reliability.
Technical parameters of HBT40s-10-45 concrete conveying pump
|
Items |
Units |
Parameters |
Parameters |
||
|
Performance of the machine |
Theoretical max. discharging volume |
m³/h |
40 |
50 |
|
|
Theoretical max. delivery pressure |
Mpa |
10 |
12 |
||
|
Max. delivery frequency |
times/min |
24 |
25 |
||
|
Theoretical max. delivery distance |
Vertical |
m |
120 |
140 |
|
|
Horizontal |
m |
300 |
350 |
||
|
Distribution valve type |
|
S valve |
S valve |
||
|
Specification of delivery cylinder |
mm |
Φ160×1000 |
Φ200×1200 |
||
|
Specification of main oil cylinder |
mm |
Φ100/Φ70×1000 |
Φ125/Φ80×1200 |
||
|
Oil tank capacity |
L |
300 |
300 |
||
|

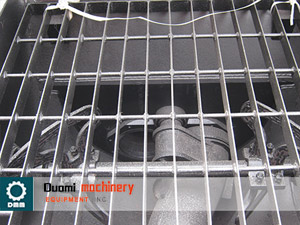

Hopper capacity |
L |
600 |
600 |
||
|
Feeding height |
mm |
1400 |
1500 |
||
|
Outlet opening diameter |
mm |
Φ125 |
Φ150 |
||
|
Inner dia. of delivery pipe |
mm |
Φ125 |
Φ125 |
||
|
Power system |
Main motor power |
Kw |
45 |
55 |
|
|
Rated voltage |
V |
380 |
380 |
||
|
Rated speed |
r/min |
1480 |
1480 |
||
|
Hydraulic system |
Hydraulic oil circuit type |
|
Open circuit |
Open circuit |
|
|
Max. oil pressure of pumping system |
MPa |
28 |
28 |
||
|
Max. oil pressure of mixing system |
MPa |
14 |
14 |
||
|
Max. mixing speed |
r/min |
30 |
30 |
||
|
Other parameters |
Allowed range of concrete slump |
mm |
80～200 |
80～200 |
|
|
Max. diameter of aggregates |
mm |
Pebble 40，Crushed stone 30 |
Pebble 40，Crushed stone 30 |
||
|
(length ×width ×height) |
mm |
4970×1680×2580 |
5270×1860×1875 |
||
|
Overall weight |
Kg |
3200 |
3500 |
||
|
Pulling speed |
Km/h |
≤8 |
≤8 |
||
